Demonstration of the Bacteria Class

                      We shall create a class called ‘bacteria’. This class will model a real life bacteria and we shall assume that the bacteria is going to move only on a 2-D (two-dimensional) area (i.e. we will only bother about the x and y axis). Of course you can extend it to 3-D as well. To keep track of the position, we shall make use of two variables x[2] and y[2].

x[0] and y[0] will be used to store the starting position. Once the bacteria moves, the new position will be stored in x[1] and y[1]. For the next movement, x[1] and y[1] will become the starting point and so we set:

x[0]=x[1] and

y[0]=y[1]

Another data member is the variable ‘stepsize’. This determines the length of each stride of the bacteria. Higher the value, the more distance the bacteria will cover each time.

The other two variables needed are ‘ai’ and ‘bi’. This is used to specify the direction of the movement (those of you who have learnt about vectors will know about the properties of a unit vector). Anyway a unit vector is needed to decide the direction of movement.

The program written below is meant to illustrate the use of comments as well. Many programmers have different styles of commenting but you should always make use of comments throughout your program.

                    //Revised on :16 Feb 2004 *
                    // (modified the unit_vec( ) function) *
                    //****************************************************************

class bacteria
{

protected:
float x[2],y[2],food[2];                                     //To store the old and new position
int stepsize;
float ai,bi;                                                     //Unit vector

bacteria( )                                                     //Constructor with no arguments
{

}

void disp_final( );                                         //To display new position
void disp_initial( );                                         //Display initial position
void unit_vec( );                                             //To generate direction
void calculate( );                                                 //To move the bacteria
void move( );
int test( );
};

if (food[1]>food[0])                                             //only if food increases we want to move bacteria
{
    return 1;
}

else
    return 0;

return 0;
}

The output would be:

The original position of bacteria is : 41 , 18467
The new position of bacteria is : 41.2325 , 18468
The original position of bacteria is : 41.2325 , 18468
The new position of bacteria is : 42.0056 , 18468.6
The original position of bacteria is : 42.0056 , 18468.6
The new position of bacteria is : 42.3698 , 18469.5

The test( ) function is used to ensure that the bacteria moves to positions with more food. If the amount of nutrition at the new place is less, then we will find a new unit vector and search in another position. In the above program the food will always keep increasing in the new position (because there is no provision provided for generating a negative unit vector). In real applications you would have to provide means for doing that as well. Also, the food function here is simply ‘x’ coordinate plus ‘y’ coordinate; in real applications you will have complicated equations.

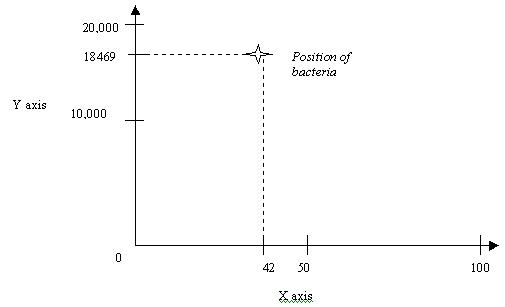

The output may appear a little weird. What does 42.3698 , 18469.5 mean? Actually we are working with vectors; thus the output is as good as saying:

42.3698 x + 18469.5 y

42.3698 units on the x axis and 18469.5 units on the y axis.

This is a very simple illustration. In reality, the bacteria would probably have to move around thousands of times and it has to move in some logical manner. Over here we make the bacteria move in a completely random manner. And you will also need to use a lot more bacteria objects to search for the best point (one bacteria object will not be sufficient to search a huge area).

We’ve modeled a general class called ‘bacteria’ but the problem is that certain types of bacteria have different methods for movement (for example: E.Coli and TB bacterium move differently). E.Coli and TB are bacteria but they have different movements. Now what can we do? Should we declare another class called ‘ecoli’ and ‘tb’? Should we again declare the coordinate variables x,y,z and the member functions in each of these classes? And if we should do that, what is the purpose of having a general ‘bacteria’ class?

The idea of having a general bacteria class serves two purposes:

• First of all, we are modeling the real world (we have different types of bacteria, each with some unique features). But all bacteria have certain common features and it is these common features that we declare in the general bacteria class. It is easier to think and program based on real life objects (this is the basis of OOP).
• Secondly, we can use the concept of inheritance to solve our problems. Using this we needn’t redefine all the variables and functions that are present in the ‘bacteria’ class again.

The ecoli and TB will also be modeled as classes but they will be derived from the general ‘bacteria’ class. In this way the two classes will inherit the properties of the ‘bacteria’ class. This is known as inheritance. Thus now you can create objects of type ‘TB’ and ‘ecoli’ as well. Inheritance will be dealt with in Chapter 10.

Suppose another programmer in future wants to add another type of bacteria, he can simply derive a new class from the existing ‘bacteria’ class (thus saving time and reusing the code).
